KH1 HAND-HELD, 5-BAND TRANSCEIVER, FACTORY ASSEMBLED
- Overview
- Specs
- Packages
- Options/Accessories
- Reviews
- Manuals
- Firmware/Software
- Price List/Order
Overview
We’ve just tackled some of the hardest problems with HF field deployment: How to get you on the air in seconds, with an internal ATU that tunes both a built-in, multi-band whip and BNC-connected random wires. Providing field logging that’s truly convenient. Creating the optimal user interface for handheld CW operation – because there isn’t always somewhere to sit. And making an HF rig that’s light enough to use HT-style without wrist fatigue.
The result of this effort is the KH1: an ultralight radio you’ll never leave at home. It’s ideal for SOTA, hiking, vacation and business travel, or just that carefree hour after the chores are done.

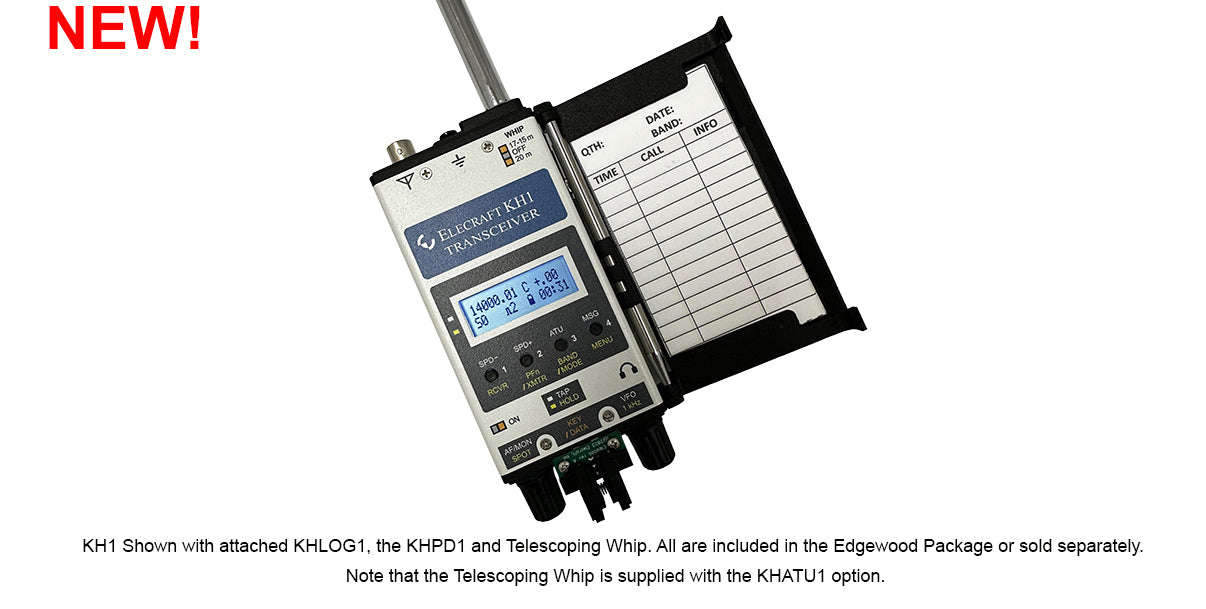

With the Edgewood Package (shown installed below), your KH1 becomes a fully integrated station, with fold-out log tray and pen, plug-in keyer paddle, battery, charger, ATU, and whip antenna. It all fits in our versatile ES20 carrying case, with room to spare.
KH1 Features:
• 40-15 m ham bands; 6-22 MHz SWL
• CW mode; 5 watts, all bands
• ATU includes whip & high-Q inductor for 20/17/15 m
• 2.5 AH Li-Ion battery & internal charger
• CW decode & 32K TX log
• Scan/mini-pan feature
• Real-Time Clock
• Full remote control
• Speaker
• RIT, XIT, & VFO lock
• Light gray case stays cool even in bright sunlight
In the Box:
- KH1-F, Hand-Held, 5-Band Transceiver
- E980262 Power Cable
- KXUSB USB Cable
- E740377 KH1 Owner's Manual
**Does not come with KXBT2 battery**
NOTE: We currently cannot ship the KH1 to any EU country. The KH1 is currently not CE certified. If you are interested in purchasing a KH1, please contact any of our European distributors listed here.
Specs
GENERAL
- SIZE, enclosure only: 1.4”H x 2.4”W x 4.4”L (3.5x6.1x11.2 cm). With protrusions, 5.6”L (14 cm).
- WEIGHT: ~7 oz. (0.2 kg). With all options except ES20 bag, ~13 oz. (0.36 kg).
- SUPPLY: 8-15 VDC @ 50-70 mA RX (no signal), 0.5-1.0 A TX.
- FREQUENCY RANGES: RX, 6.7 – 22.0 MHz; TX, 40/30/20/17/15 m ham bands.
- VFO FEATURES: RIT, XIT, VFO lock, configurable steps sizes, and per-band scratchpad memory.
RECEIVER
- ARCHITECTURE: Superhet with variable-BW crystal filter.
- MDS: -130 dBm (typ).
- ATTENUATOR: -12 dB" to "-10 and -30 dB.
- MODES: CW/LSB/USB receive; allows cross-mode (CW TX, SSB RX). S-METER & AGC included.
TRANSMITTER
- POWER OUTPUT: 5 W nominal, all bands, at 11 VDC.
- SWR TOLERANCE: Infinite. Auto-power rollback on excessive reflected power.
- SIDETONE: 500-800 Hz.
- KEYER: 8-50 WPM. Iambic A and B, paddle reverse, and hand-key mode. 3.5 mm KEY jack can be used with KHBT1 or other paddles. 3 messages; auto-repeat. ATU ATU works with both BNC jack and whip-mount post (M4 x 0.7 thread). Matches most antennas on multiple bands to < 2.5:1. Slide switch selects 15/17 m or 20 m high-Q inductance for whip, or center-off setting for ATU use with BNC jack (bypasses whip inductor). 1-4 s matching time. Per-band L/C memories.
ATU
- ATU works with both BNC jack and whip-mount post (M4 x 0.7 thread). Matches most antennas on multiple bands to < 2.5:1. Slide switch selects 15/17 m or 20 m high-Q inductance for whip, or center-off setting for ATU use with BNC jack (bypasses whip inductor). 1-4 s matching time. Per-band L/C memories.
ADDITIONAL FEATURES
- FULL REMOTE CONTROL & FIRMWARE upgrades via supplied USB-A cable.
- SCANNING: live-audio scanning with visual spectral display (8 amplitude levels).
- TEXT LOGGING: 32 kB of recorded TX text, with time stamping and data upload function. RTC (24-hr).
- TEXT DECODE & CODE-PRACTICE MODE.
- TX MONITORING: voltage, current, PA temp, SWR, power. SPEAKER: 25x16 mm; ~0.5 W peak AF output.
Package
To charge the battery internally, you need the KHIBC1, Internal Battery Charger AND the SS30DV, Compact Power Supply [or some other type of external power source] OR you need to remove the KXBT2 battery to charge it externally using the KXBC2 Lithium-Ion fast charger.
KH1 Edgewood Package - In The Box | Compare to KH1 Transceiver - In The Box |
KH1 Edgewood Package ($100 Pkg Savings) |
Options for the KH1
Accessories
- ES20 Carrying Case
- KXBT2 Battery pack
- KXBC2 External Battery Charger
- SS30DV Compact Switching Power Supply
AX1 & KH1 Anntena Accessories
- AX1 Multi-Band Whip Antenna
- AX2 Miniature 20-Meter Whip Antenna
- AXE1 40 M Antenna Extender
- AXT1 Tripod Adapter
- E770064 13’ Ground Wire for AX1
- E770091 33’ Ground Wire for AXE1
- BNC-BP M-Binding Posts
- BNC-RA Male-Female Right Angle BNC
- BNC-UHF Adapter
- KHRA1 Right-Angle Whip Mount for the KH1
- KH1 Replacement Whip
- KHLOGC1 Replacement Whip Clips for the KH1
