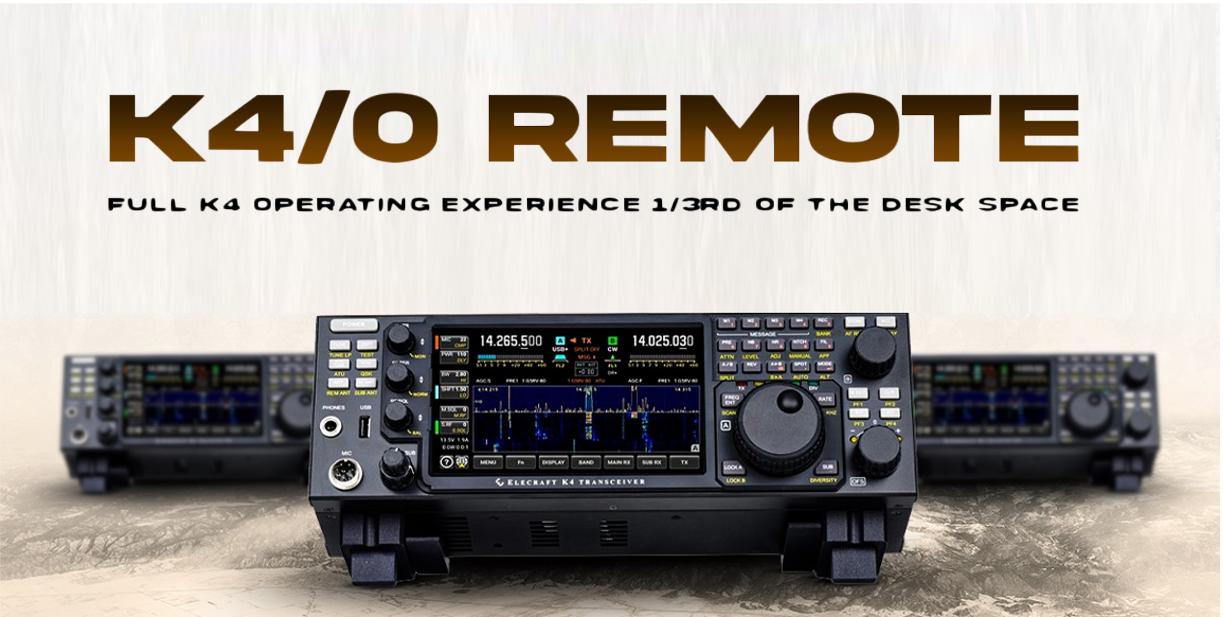

K4/0 REMOTE PANEL

Skip to product information
1 of 1

FULL K4 OPERATING EXPERIENCE . . . 1/3RD OF THE DESK SPACE

Operate any K4 station, from anywhere. Our new, highly portable K4/0 gives you complete remote control of the high-performance Elecraft K4 transceiver, whether from the comfort of home or out on the road. The remote K4 can be located anywhere the RF action is—at a site with an extensive antenna farm, on a mountaintop, even in a DX hot-spot. You’ll have new “ears” you only dreamed of!



René Lutz, HB9NBG, operating the K4/0 at Ham Radio Friedrichshafen

When placing a K4/0 order, your credit card will be authorized for the order total, but the funds will not be captured.  The authorization will expire, and a new payment link will be emailed to you shortly before shipping.

View full details
  • Overview
  • What's In The Box
  • Specs
  • Additional Features & Options
  • Manuals
  • FAQ
  • Price List/Order



OVERVIEW

Operate any K4 station, from anywhere. Our new, highly portable K4/0 gives you complete remote control of the high-performance Elecraft K4 transceiver, whether from the comfort of home or out on the road. The remote K4 can be located anywhere the RF action is—at a site with an extensive antenna farm, on a mountaintop, even in a DX hot-spot. You’ll have new “ears” you only dreamed of!

Connecting to a remote K4 takes just seconds. Just tap the globe icon on the K4/0’s front panel and select a server radio from your list. You’ll need each K4’s IP address (or network name) and a password created by the owner.

No interface devices or third-party server required. The K4/0 uses the peer-to-peer protocol built into the K4, allowing the radio to act as its own server.

Compact and lightweight. At only 4” (10 cm) deep, the K4/0 is sized-right for a small home station, RV, hotel, or picnic table. It’s also easy to carry, weighing in at about 4.5 pounds (2 kg) and fitted with a handle. Optimize your viewing angle with the folding tilt feet, or place on a shelf. Low power requirements and an optional battery pack providing up to 4 hours of operating time.



What's In The Box

  • K4/0-F
  • 6Ft USB 2.0 A Male to B Male
  • K4/0 Start-up Guide



SPECS

  • Size 13.5 x 4 x 4” HWD (35 x 10 x 10 cm), less projections
  • Weight 4.5 pounds (2 kg)
  • Operating Temp. 0-60 C (32-140 F)
  • Current Drain ~1 A nominal; up to ~2 A when charging the battery while operating; up to ~3 A when charging the battery, operating, and powering accessories via AUX 12 V OUT and USB-A jacks. Total accessory current must be 1 A or less.
  • Display Same as K4: 7" high-resolution color LCD, plus HDMI output up to 3840 x 2160
  • Speakers 2 internal; 1 or 2 external, 4 ohms minimum impedance
  • Power Supply 11-15 V via APP jack (>= 12.6 V if charging the battery from this jack), or USB-C (45 W USB-C supply recommended, e.g., Elecraft K4/0-CRGR-PS; see Accessories)
  • Battery Pack KBT4
  • WiFi Dual-band, 802.11a/b/g/n/ac; external antenna included
  • Digital I/O USB-A x3 (mouse, keyboard, K-Pod, flash drive), USB-B (sound card / COM ports)
  • Analog I/O Headphone jacks x2 (⅛" and ¼"), mic x2 (8-pin and ⅛"), ext. speakers (⅛")
  • Control I/O Key, Paddle, PTT IN, aux. 12 V output 3





Additional Features & Options

  • Same front panel as K4 – includes three 400-count optical encoders and bright, high-resolution 7” color LCD
  • 11 V, 5 AH Lithium-Ion battery pack with internal smart charger that monitors many safety parameters, including charge cycle and battery temperature
  • Flexible DC power – you can use either USB-C or the 12-15 V APP connector
  • Built-in Wi-Fi – features external antenna jack for extended range
  • Plug-and-play with your software apps e.g. digital modes logging contest
  • Extensive I/O – including front/back mic and headphones jacks, dual external speakers, PTT/KEY/paddle jacks, auxiliary 12 V out, multiple USB ports, ethernet, and HDMI video output for external monitor (up to 3840 x 2160)
  • USB-B PC connector allows hardware interface emulation, including DTS and RTS control of PTT, KEY, and direct FSK modulation
  • Directly attach mouse & keyboard
  • Works over cellphone networks
  • Simple software update – handled at the K4/0 itself, with no computer needed
  • Customize your UI with our K-Pod controller...16 functions + weighted knob







MANUALS

  • K4/0 Start-Up Guide
  • Installing and Removing the KBT4 Battery Pack



FAQ

Q: Can the KBT4 be recharged while it's installed in the K4/0?

A: Yes. The KBT4 can only be recharged while installed in the K4/0 while the K4/0 is either on or off.



Q: Can I prevent charging of the battery while it is installed in the K4/0?

A: Yes. The K4/0 "Charge Enable" Menu entry has three options:

  1. "Always": Charge battery when the K4/0 is either on or off.
  2. "ON": Charge only when the radio is on.
  3.  "OFF": Charging for the Battery is turned off, regardless of the K4/0 po
