KPA500 & KAT500 POWER COMBO, ASSEMBLED (NOTE: SELECT 1 PWR CABLE BELOW) - $75 PACKAGE SAVINGS, $50 DISCOUNT + FREE SHIPPING (EST. $110). SAVE UP TO $235 DURING OUR BF/CB SALE!

1 1

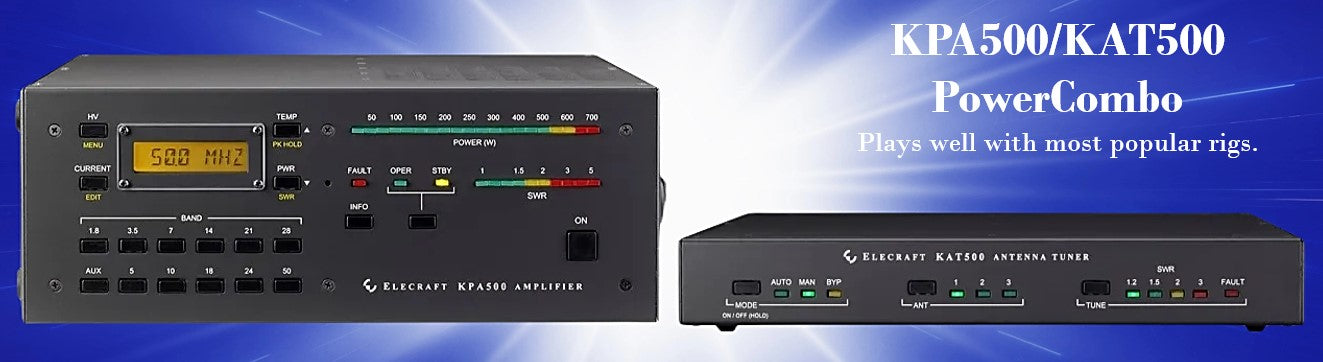

Plays Well With Most Popular Rigs. Add more punch to your signal with Elecraft's Power Combo and take your transceiver to a full 500 watts out.

 In addition to the K3 and K3s, the DXpedition-proven KPA500 and KAT500 combo is available for most recent Icom, Yaesu, Kenwood and Flex transceivers.  We've taken the guesswork out of operating by providing cabling and instructions for some of the most popular rigs in shacks today.

    View full details
    • Cables for Radio Brands/Models
    • Price List/Order

    Cables for Radio Brands/Models



    Elecraft

    Cable # Transceiver Model Notes
    E100416 (Included w/ Amp) Phono Cable works with most radio models.  Please Select additional cable(s) below based on desired operating mode.

    Standard Mode – Keying.   Phono Keying Cable included with Amp.

    Amp/ATU selects band and freq. by using its internal frequency counter to measure TX freq. in this mode. Works with all radios with a keying output phono jack.
    KPAK3AUXSET K3, KES Enhanced Mode. Aux Cable set for KPA500 + second E850463 aux cable for KAT500. AUX Cable Set incl: 15-Pin to 15-Pin DE-15 + Key Line Interrupter adapter.



    Cables for non-Elecraft Transceivers

    Yaesu

    Cable # Yaesu Model Notes
    E100416 (Included w/ Amp) Phono Cable works with most radio models.  Please Select additional cable(s) below based on desired operating mode. Standard Mode – Keying.   Phono Keying Cable included with Amp.  Amp/ATU selects band and freq. by using its internal frequency counter to measure TX freq. in this mode. Works with all radios with a keying output phono jack.
    CBL-YAESUKEY FT-817, FT818 Standard Mode – Keying.  Incl. 8-pin MiniDIN to phono
    CBL-YAE-BANDKEY FT-920, FT990, FT1000 family, FT2000, FT5000, FT9000 family Intermediate Mode. Incl. 8-pin DIN to DE15 cable for band data plus keying, plus Aux Cable to connect the KAT500 to the KPA500.
    CBL-YAE-BKMINI FT857, FT891, FT897, FT991, FT710AESS Intermediate Mode. Incl. 8-pin MiniDIN to DE15 cable for band data plus keying, plus Aux Cable to connect the KAT500 to the KPA500.
    CBL-YAE-BKDIN10 FT450, FTdx1200, FTdx10 Intermediate Mode. 10-Pin MiniDIN to DE15 cable for band data plus keying, plus Aux Cable to connect the KAT500 to the KPA500.
    CBL-YAE-BKDA15 FTdx3000, FTdx101 Family Intermediate Mode. DA15 to DE15 cable for band data plus keying, plus Aux Cable to connect the KAT500 to the KPA500.

    Icom

    Cable # Icom Model Notes
    E100416 (Included w/ Amp) IC7300, 7600, 7700, 7851, 9100 Standard Mode – Keying.   Phono Keying Cable included with Amp.
    CBL-ICOMKEY Icom "small" radios: IC703, 706, IC7000 Standard Mode. ICOMKEY to KAT500. Use Phono cable from the KAT500 to the KPA500. (Phono Cables incl. w/Amp & Tuner.).

    Flex

    Cable # Flex Model Notes
    E100416(Included w/ Amp)  Flex 3000, 5000 Standard Mode – Keying.   Phono Keying Cable included with Amp.
    CBL-FLEX-PWRCMB Flex 6000-family Enhanced mode. Incl. KUSB cable for freq. data, null modem cable, gender changer to KPA500 (Phone Cable for keying incl. w/Amp)

    Kenwood

    Cable # Kenwood Model Notes
    E100416 (Included w/ Amp) Phono Cable works with most radio models.  Please Select additional cable(s) below based on desired operating mode. Standard Mode – Keying.   Phono Keying Cable included with Amp.

    Amp/ATU selects band and freq. by using its internal frequency counter to measure TX freq. in this mode. Works with all radios with a keying output phono jack.
    CBL-KENKEY Kenwood TS140, 430, 440, 450, 570, 820, 830, 850, 930, 940, 950, 2000 Standard Mode-Keying.  Incl. 7-pin DIN to Phono Keying Cable.
    CBL-KENKEYM TS-480 Standard Mode -Keying.  Incl. 8-pin MiniDIN to Phono Keying Cable.
    CBL-KENSER500 Kenwood 580, 590, 890, 990 Enhanced Mode - Keying & Freq. Data. Incl. DE9 to 3.5mm 7-Pin Din, and CBL-KENKEY



    Standard Mode = Keying (amplifier to transmit mode) Amp’s internal frequency counter auto-selects band and ATU frequency.

    Intermediate Mode = Intermediate Mode-Radios w/BCD band data lines only. Keying plus band switching prior to TX. Amp’s internal frequency counter selects ATU frequency.

    Enhanced Mode = Keying & Frequency Data from radio select amplifier band and ATU frequency prior to TX.



    Don't see your radio?  Contact us!

    Visit here for KPA500 App notes.
