KAT2 20W INTERNAL ATU

1 1

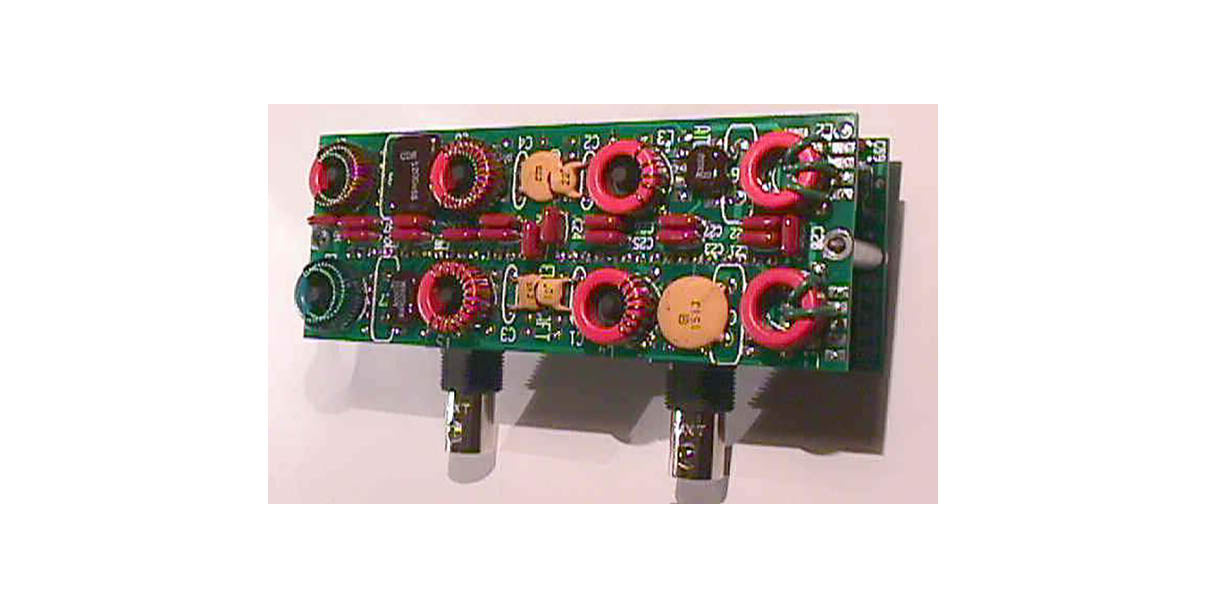

KAT2 Automatic Antenna Tuner

The KAT2 allows you to connect nearly any antenna directly to the K2 and use it on all bands (160-10 m). Two antenna jacks are provided--instantly A/B test both antennas on any signal using the ANT 1/2 switch. Uses all latching relays, so current drain is zero except when tuning.



View full details
  • Specs
  • Manuals
  • Price/Add To Cart



SPECS

  • L - C Ranges: L: approx. 0-20 µH in 256 steps; C: approx. 0-2400 pF in 256 steps
  • Network Type: L-network (series L, shunt C); C switchable to transceiver or antenna side
  • SWR Range Matched: Up to 10:1 typ. (varies with band; smaller range on lowest/highest bands)
  • Tuning time: 1 to 5 seconds typical for initial tune-up; < 1/2 sec. to recall stored settings
  • SWR Display: 1.0:1 to 9.9:1
  • Power Display: 0-20 watts (approx.); forward and reflected power shown in 0.1-w increments
  • Current Drain: Approx. 10-30 mA during TUNE; < 5 mA at all other times
  • Size: 4.2" (L) x 1.6" (D) x 1.5" (H) (10.7 x 4.0 x 3.8 cm)
