K4D PACKAGES
NEW K4D PACKAGES
We've taken the most popular K4D options and accessories our customers have purchased and configured three K4D packages to fit your operation style. Check out the packages below...along with package savings.

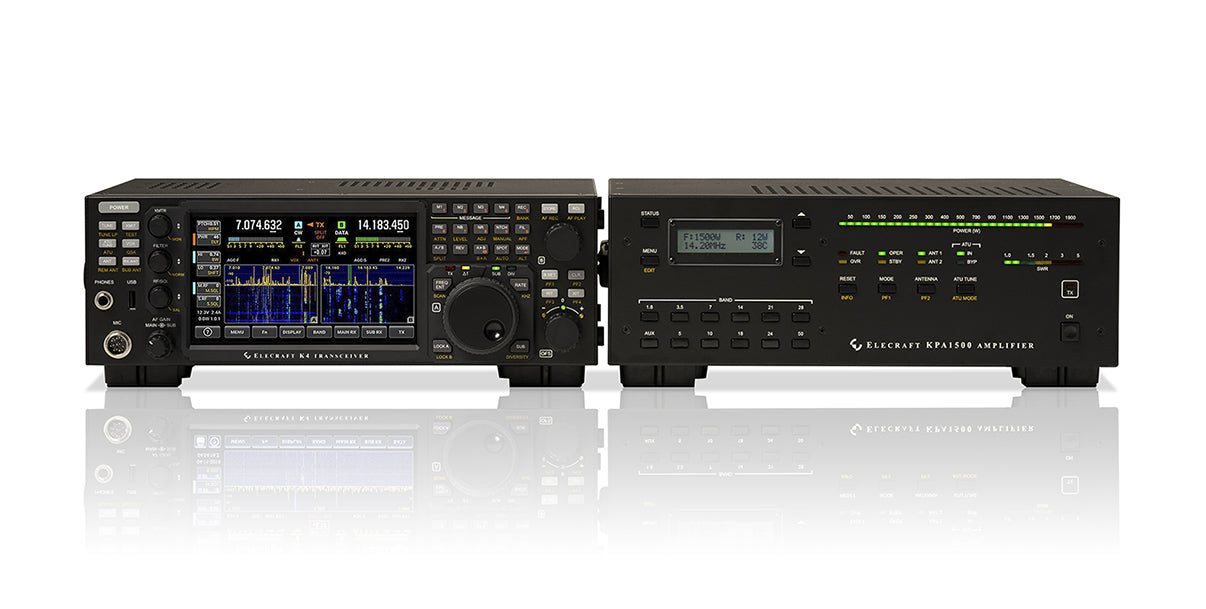

| K4D PACKAGE 1 | K4D PACKAGE 2 | K4D/KPA1500 PACKAGE 3 |
| K4D Transceiver, Factory Assembled | K4D Transceiver, Factory Assembled | K4D Transceiver, Factory Assembled |
| KAT4 Auto-Tuner Option | KAT4 Auto-Tuner Option | KAT4 Auto-Tuner Option |
| MH4 Hand Held Microphone | K-Pod Control Panel | KPA1500 1500+ W Solid State Amplifier |
| $150 Package Savings! | MH4 Hand Held Microphone | KPAK3AUX - AUX Cable Set Optional |
| $6,419.85 | $175 Package Savings! | MH4 Hand Held Microphone |
| $6,754.80 | Two (2) SP4 Speakers | |
| ES100 K4 Carrying Case & Elecraft Luggage Tag | ||
| $275 Package Savings! | ||
| $14,490.55 |
Please see the Shipping Status page for K4 shipping updates. |
- Models
- Options
- Price List/Order
Models
The K4 adapts to your needs, with three models to choose from.
| Model K4 |
|
Basic K4 transceiver provides 160-6 m, all-mode coverage; 100 W output; five receive RF sources; and wideband dual watch, allowing the main and sub receivers to be set for the same or different bands. |
| Model K4D |
|
Adds KRX4 option, with a second set of band-pass filters and additional direct-sampling ADC module. This allows the two receivers to use different antennas – a requirement for diversity receive. Having two sets of band-pass filters also optimizes signal handling when the receivers are on different bands and/or antennas. |
| Model K4HD Coming Soon! |
|
Includes all of the above, plus our dual superhet module, the KHDR4. Ideal for competitive field day, contesting, and DXpedition stations. Each superhet receive section includes two crystal filters: one SSB/data bandwidth, one CW bandwidth. The superhet’s 8 MHz IF has an excellent dynamic range, so additional crystal filters are not required. |
