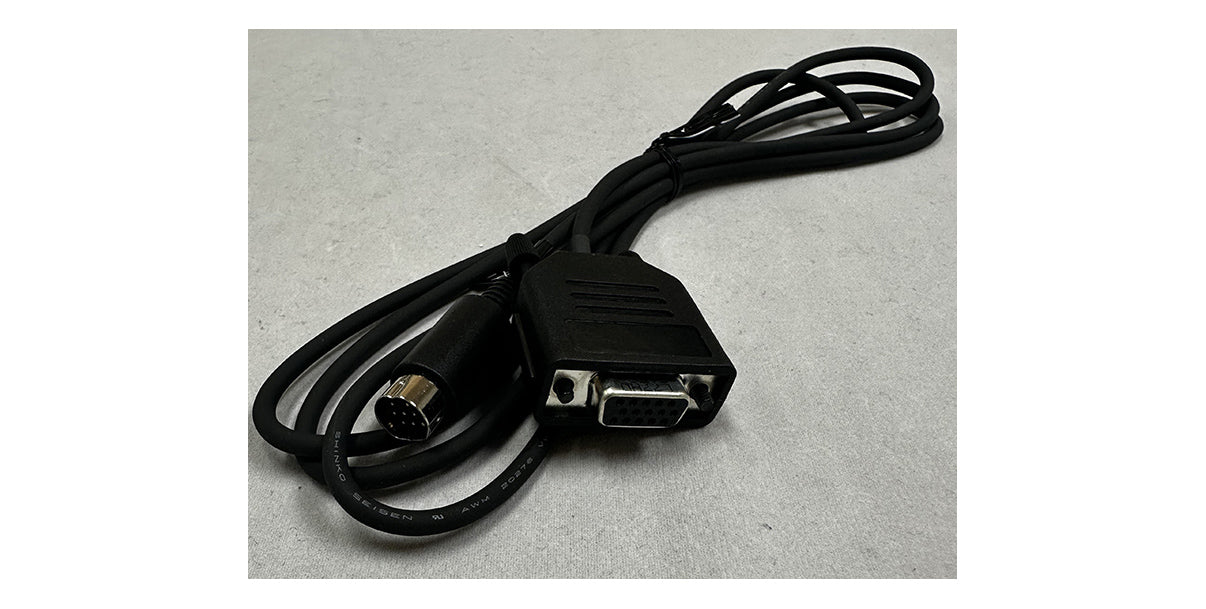

CBL-YAE-BKDIN10 Cable used to connect the KPA1500 or the KPA500/KAT500 PowerCombo to Yaesu transceivers listed below.
If your radio is not listed above, contact Technical Support.
|Cable Type||Transceivers||Operation Mode|
|KPA500/KAT500 PowerCombo||CBL-YAE-BKDIN10||Yaesu FT450, FT1200||Intermediate Mode. 10-Pin MiniDIN to DE15 cable for band data plus keying, plus Aux Cable to connect the KAT500 to the KPA500.|
|KPA1500||CBL-YAE-BKDIN10||Yaesu FT450, FT1200, FTDX10
||Intermediate Mode. 10-Pin MiniDIN to DE15|
Standard Mode = Keying (amplifier to transmit mode) Amp’s internal frequency counter auto-selects band and ATU frequency.
Intermediate Mode = Intermediate Mode-Radios w/BCD band data lines only. Keying plus band switching prior to TX. Amp’s internal frequency counter selects ATU frequency.
Enhanced Mode = Keying & Frequency Data from radio select amplifier band and ATU frequency prior to TX.
