P3SVGA P3 VIDEO/FFT ADAPTER, KIT

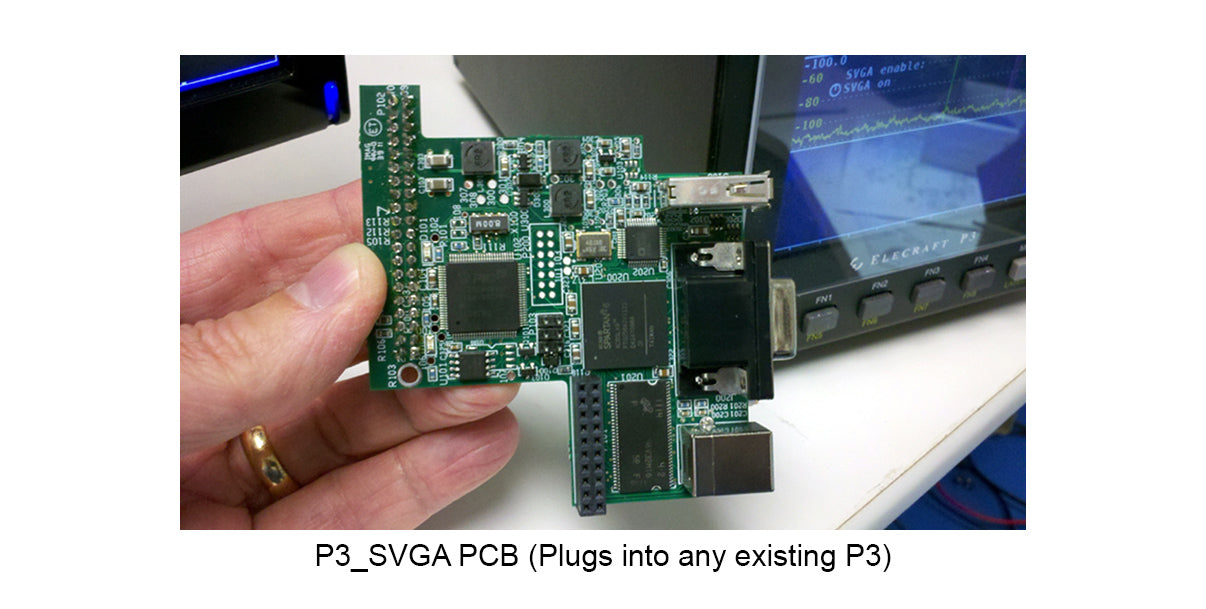

The P3SVGA option is an internal adapter that fits inside the P3 cabinet. Easily installed at any time, the internal adapter uses a separate rendering engine to present a higher resolution image of the RF spectrum on a separate display monitor. Only a few basic hand tools are needed. No soldering or wiring is required.
Note: If you already own a P3, and you want to install the P3SVGA, then you must order the P3SVGA (Kit).
- Overview
- Manuals & Downloads
- Price List/Order

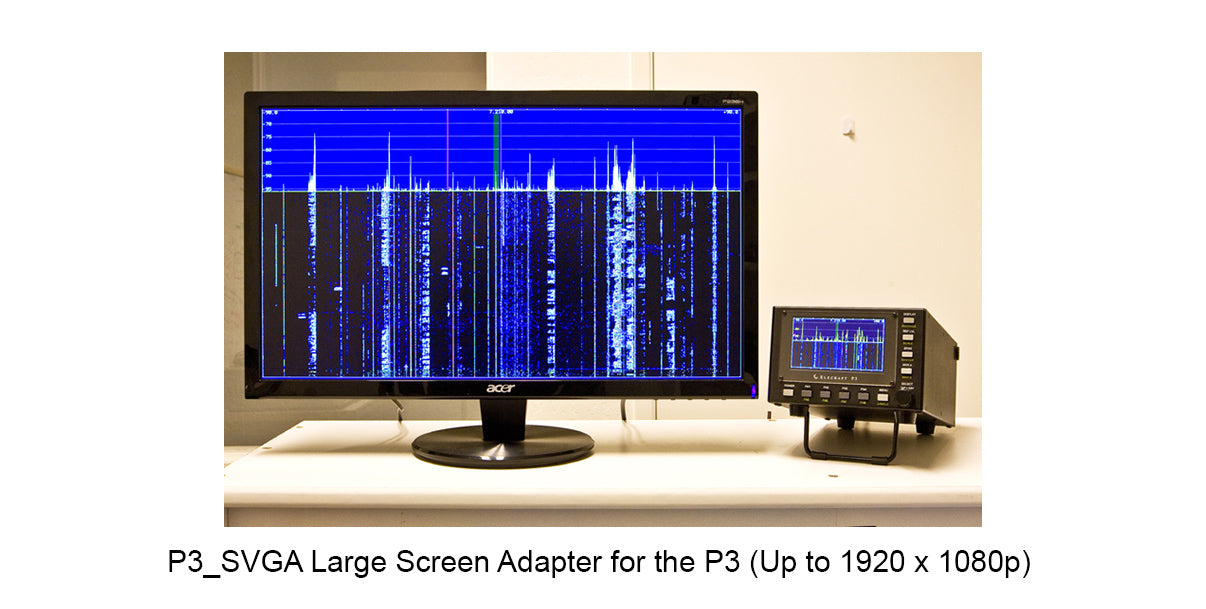

The P3SVGA Super Video Graphics Array option provides output to an external monitor that adds widescreen display capability to the P3 with enhanced data terminal operations that permits sending a text from a keyboard attached to the P3, storing messages in memory that may be recalled with a simple keystroke, and transmitting a stored message at regular intervals.
The P3SVGA features a dedicated, high-speed Fast Fourier Transform (FFT) processor that performs a 2048 point FFT in parallel with the P3's existing processor for a much higher frequency resolution per dot on the larger screen. The P3SVGA includes a USB connector that can accept a flash memory drive for screen dumps or connect to many USB keyboards to allow direct digital mode operation via the K3/K3S and P3 with transmit and receive display on an external monitor.
The P3 adds 3 connectors to the rear of the P3:
- Keyboard
- External Display
- Aux Data (future features)
