OVERVIEW



What's in the Box

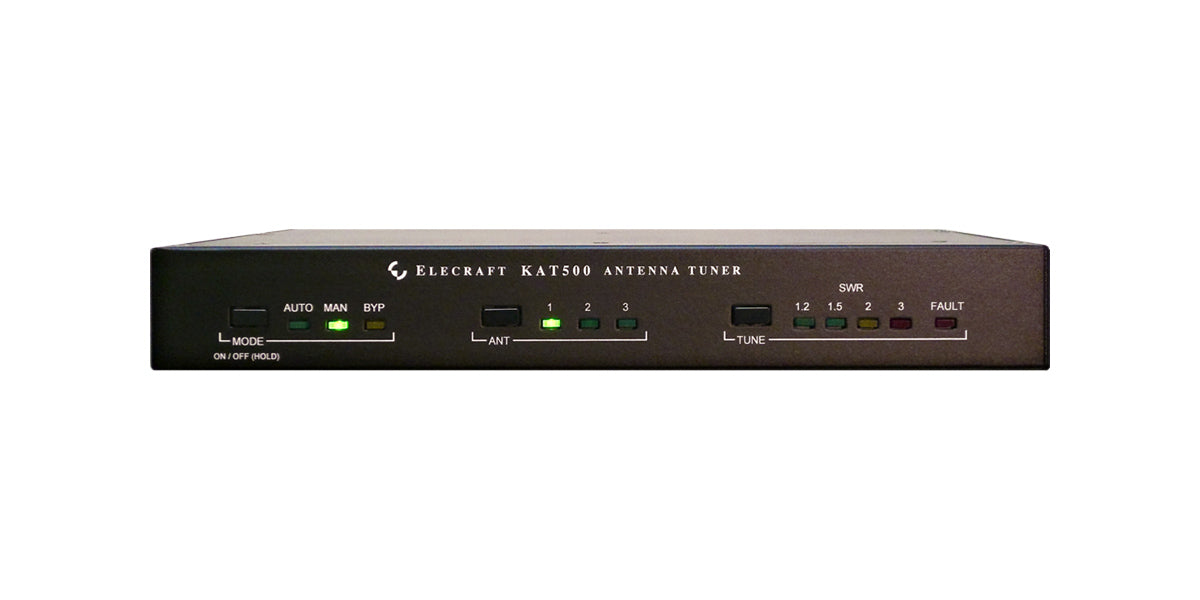

Refurbished KAT500-F
Power Cable






SPECS

  • Autotune Power Range:  10W — 100W
  • For optimum matching accuracy, tune with >20W.
  • Selectable Antenna Outputs: 3
  • Weight: 4.6 pounds ( 2.1 kg )



Frequency Typical Matching Range and Power Limit
3 — 30 MHz 600W into 5 to 500 Ohms (10:1 SWR)
1000W into 16 to 150 Ohms (3:1 SWR )
1.8 — 2MHz 600W into 10 to 500 Ohms (5:1 Low Impedance, 10:1 High Impedance SWR)
1000W into 16 to 150 Ohms (3:1 SWR )
30 — 60MHz 500W into 5:1 SWR (10 to 250 Ohms)

Matching specified to a 1.0:1 to 1.6:1 resultant SWR. Power rating is ICAS (Intermittent Commercial and Amateur Service).



Accessories

  • E980262  - Power Cable, 3ft, APP to 2.1MM connector
  • E850463  - KAT500 to K3S/K3 Enhanced Mode Cable
  • KXUSB - KXUSB USB Cable
  • KXUSBa Extra Cable - USB RS232 to 3.5mm Cable
  • E740244 - KPA500/KAT500 book from Fred Cady





    Elecraft Certified Refurbished Limited Warranty

    Elecraft’s Certified Refurbished equipment are maintained and thoroughly tested by Elecraft Technicians.

    Who is covered?

    This Warranty extends only to the first consumer purchaser, and is not transferable.

    What is covered and for how long?

    Elecraft Certified Refurbished Limited Warranty is One Year from the date of purchase for the following refurbished items:

    • Transceivers
    • Amplifiers
    • Tuners
    • Panadapters
    • Remote Systems

    Elecraft Certified Refurbished Limited Warranty for products not listed above is 90 Days from the date of purchase.  This includes but is not limited to:

    • Test Equipment
    • Power Supplies
    • Accessories
    • Cables

    This Warranty is conditioned upon proper use of the product and covers manufacturing defects in materials and workmanship encountered in normal, reasonable use of the product during the warranty period.

    What is not covered?

    • Normal wear and tear
    • If the product has been mistreated or mishandled
    • If the product has been improperly installed or configured
    • If the product has been modified from its original condition
    • If the product has been subject to an accident
    • If the product has been subject to lightning, power surges, incorrect electrical voltage, or any electrical stress
    • If the product has been subject to acts of nature
    • If a battery has been charged by a battery charger not specified or approved by Elecraft for charging the battery
    • If any of the seals on an Elecraft battery are broken or show evidence of tampering; or the battery has been used in equipment other than the Elecraft device for which it is specified.

    This warranty only covers Certified Refurbished Elecraft product(s).

    What are Elecraft’s obligations?

    During the applicable warranty period, provided the Product is returned in accordance with the terms of this Limited Warranty, Elecraft will repair or replace the Product, at Elecraft’s sole option, without charge. Elecraft may, at Elecraft’s sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product, or may replace the Product with a rebuilt, reconditioned or new Product.

    All replaced Products, parts, components, boards and equipment shall become the property of Elecraft except to any extent expressly allowed by applicable law, transfer or assignment of this Limited Warranty is prohibited.

    While equipment is under warranty, owner pays inbound shipping to Elecraft for warranty repair. Elecraft will pay return shipping by UPS ground service or equivalent to addresses within the continental U.S.  Alaska, Hawaii and outside U.S. return shipping cost is paid by owner. See below for instructions on contacting Elecraft for product repairs.  Shipping cost for equipment repair not under warranty is the responsibility of the owner.

    IMPORTANT Instructions

    You must contact Elecraft, before mailing us your product to obtain authorization for the return, shipping address and current information on repair fees and turn-around times. You may contact us by email at support@elecraft.com. Shipping instructions will be included with Repair Authorization. We have more than one repair location, so please ship to the address included with the repair authorization.  Packages shipped without authorization will incur an additional shipping charge for reshipment to the correct repair location.

    Our basic repair / alignment charge is $99.00, plus return shipping. If you wish, you may set a limit for the repair charges, and we will contact you when we have reached that point before proceeding.  If we determine the problem is wholly due to a defect in components supplied by Elecraft (within the warranty period), we will not charge you for the repair. Please read the warranty information above for additional details on what is covered.

    Contact Customer Support for the Repair Authorization before shipping your equipment for repair.  You may email Customer Support at support@elecraft.com to request an authorization form.
