OVERVIEW

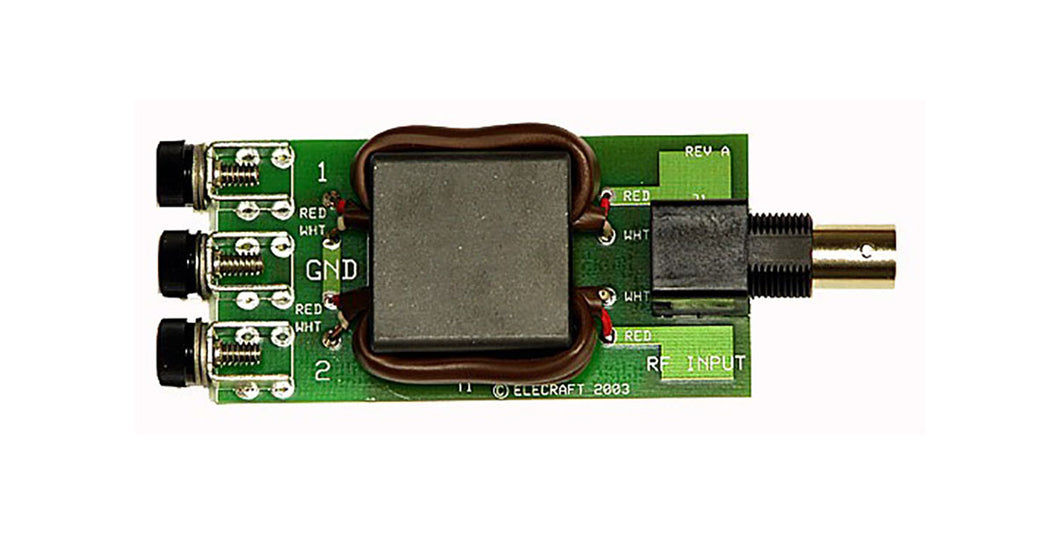

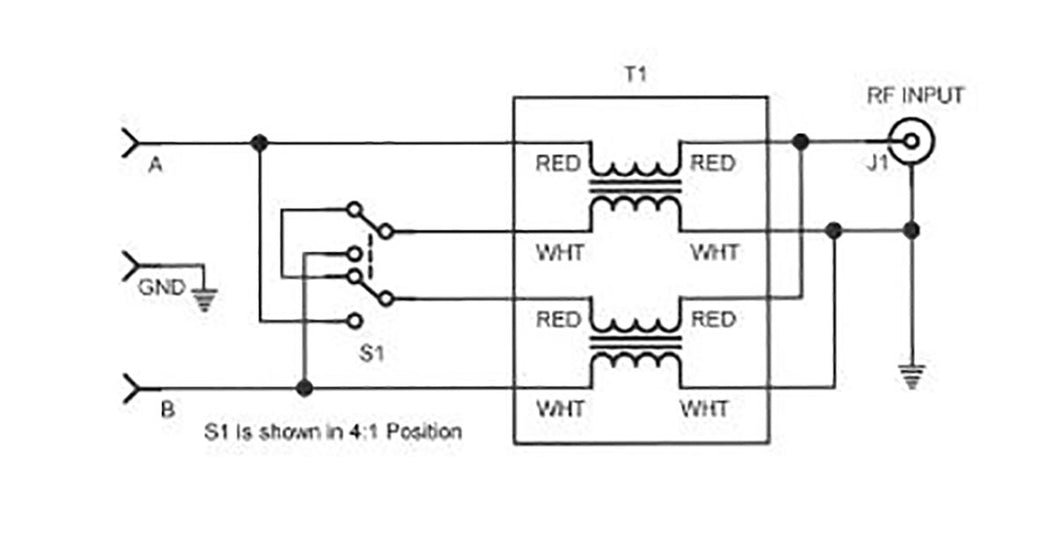

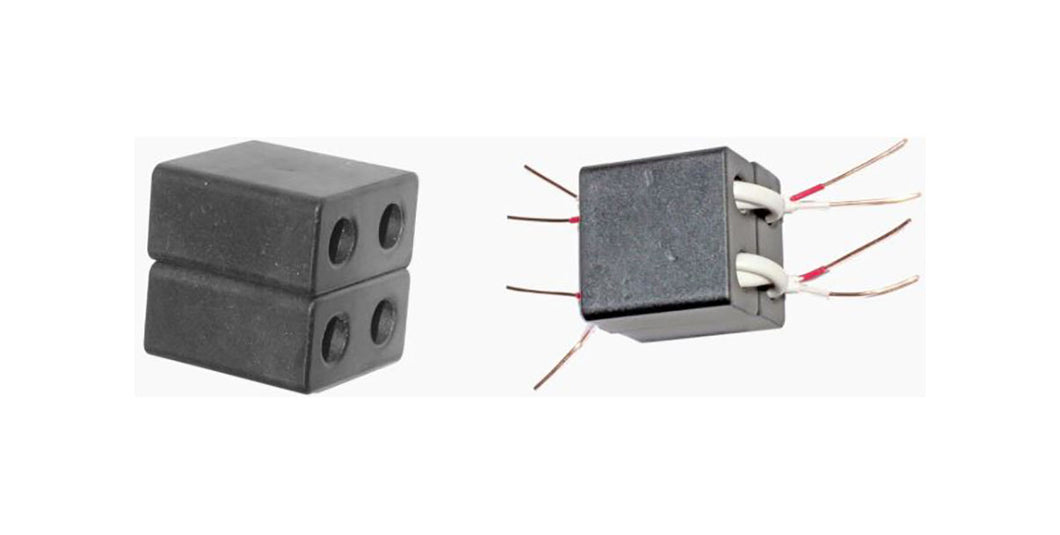

Our highly-efficient balun can handle up to 250 watts and can handle 1:1 and 4:1 ratios via an on board switch. It  is very small (just 1.5 x 3") and lightweight, making it an excellent choice for both home and field use. It uses a special winding technique to reduce losses and extend the useful range, resulting in an SWR of less than 1.2:1 from 500 kHz to 55 MHz (200-ohm load). It includes rugged screw terminals for the balanced output as well as ground, and can be used in a variety of matching applications.







SPECS

  • Power Rating: 250 watts with a matched load.
  • Bandwidth: Input VSWR less than 1.25 when connected to a 200 ohm resistive load, 500 kHz to 55MHz







    REVIEWS




      BL2 250W 1:1 & 4:1 Balun Quantity Price
      BL2 BL2 250W 1:1 & 4:1 (switched) Balun $44.95 $49.95
